CPS-EX3000.024.DIGI | CAMTEC
AC-DC power supply, 24-30 VDC, 236 A, 3000 W, CPS-EX3000.024.DIGI
Unit Price (€ / pc.)
2,142.0000 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
2,142.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2,142.0000 €
5 pcs.
2,084.8800 €
10 pcs.
2,029.4736 €
*incl. VAT plus shipping costs
**Subject to prior sale

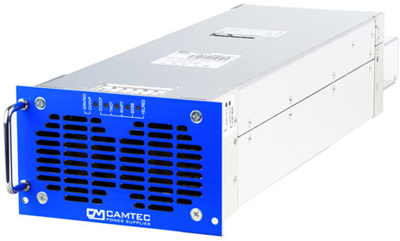

Power supply, CPS-EX3000.024.DIGI, CAMTEC
The CPS-EX model is high-precision lab power supply, this power supply is designed for scalable power system in the testing automation. The CPS-EX power supply provides low noise and ripple, a very fast programming, and a precise setting at high load changes. With an efficiency of 92-94% and a power factor of 0.99, the device is highly energy efficient. This product is also equipped with high-end capacitors of outstanding lifetime our power supplies guarantee a very long and reliable operation time. The internal protection circuits protect the power supply and the connected system, even in exceptional situations.
Features
- 3D Heat dissipation
- Real time I/V programming
- Real time I/V-monitoring
- Inhibit for safe interlocking
- Remote shutdown
- Precise dynamics on load change
- Long lifetime under hard operation
Technical specifications
| Output voltage DC | 24-30 VDC | |
| Output current | 236 A | |
| Width | 126.4 mm | |
| Input voltage AC | 184-264 VAC/250-375 VDC | |
| Height | 84 mm | |
| Power | 3000 W | |
| Depth | 444 mm | |
| efficiency | 94 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
