HPV10001.220 | CAMTEC

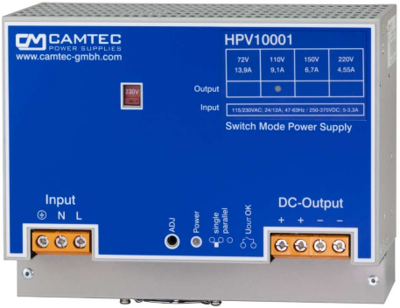

Power supply, 220 VDC (180 to 240 VDC), 4.55 A, 1008 W, HPV10001.220
Unit Price (€ / pc.)
840.021 € *
Available: 0 pcs.
Leadtime: 1 Week **
Power supply, 3041076004CA, CAMTEC
This power supply is a high precision switch mode power supply for an upscale demand. The designed meets challenging applications like complex dc-drives, piezo print head, test-stands, and professional machine-building. The power supply provides a low ripple-noise, a precise load-regulation and high efficiency up to 93%. High-end long-life capacitors guarantee an extended hold-up-time and an extraordinary lifetime of the power supply.
The power supply realizes very high-power efficiency in a space-saving housing. It is made for high reliable and demanding industrial applications, railway, infrastructure, professional machine building, printing machines and complex dc-drive up to precision piezo drives.
Features
- Designed for long life under full stress
- Precise dynamic response to load change
- High reliability, shock & vibration proof
- Soft start & auto-recovery
- Overload and short circuit protection
- Strong input filters
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 220 VDC (180 bis 240 VDC) | |
| Ausgangsstrom | 4.55 A | |
| Breite | 200 mm | |
| Eingangsspannungsbereich | 90-132 VAC, 184-264 VAC, 250-375 VDC | |
| Höhe | 156 mm | |
| Leistung | 1008 W | |
| Schutzart (IP) | IP20 | |
| Tiefe | 115 mm | |
| Wirkungsgrad | 93 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85043180 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
