HSEUIREG07201.018 | CAMTEC

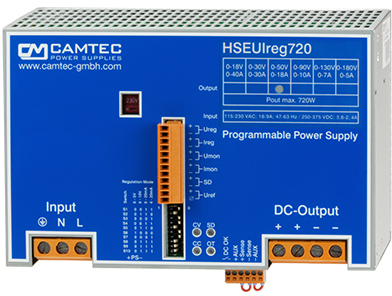

Power supply, programmable, 0 to 18 VDC, 40 A (0 to 40 A), 720 W, HSEUIREG07201.018
Power supplies with programmable output voltage/current, type Camtec HSEUlreg.
Single-phase AC/DC power supply, for rail mounting, sustained short circuit-proof, with electronic inrush current limiting; Design: ..TPS with integrated power sink for rapid settling times. Line input: 115/230 VAC, 47 to 63 Hz (selectable). Output voltage/current, programmable via analog interface: 0 to 5.0 VDC, 0 to 10 VDC, 0 to 20 mA and 4.0 to 20 mA via DIP switch. Monitoring: actual value and setpoint output 0 to 5.0 V and 0 to 10 V, selectable. Efficiency: 90 %, MTBF: 400000 h. Error message: relay contact up to 50 V. Ambient temperatures: –25 to +70 °C.
Output power 720 W, type HSEUIreg07201..T.
Dimensions: 200 x 130 x 114.5 mm. Weight: 3.0 kg.
Technical attributes (type, output voltage, output current): HSEUlreg07201.18T, 0 to 18 VDC, 0 to 40 A
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 0 bis 18 VDC | |
| Ausgangsstrom | 40 A | |
| Breite | 200 mm | |
| Eingangsspannungsbereich | 90-132 VAC, 184-264 VAC, 250-375 VDC | |
| Höhe | 130 mm | |
| Leistung | 720 W | |
| Schutzart (IP) | IP20 | |
| Tiefe | 114 mm | |
| Wirkungsgrad | 90 % | |
| Ausgangsstrombereich | 0 bis 40 A |
| Ursprungsland | DE |
| Zolltarifnummer | 85043180 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
