HSEUIREG10001.400 | CAMTEC

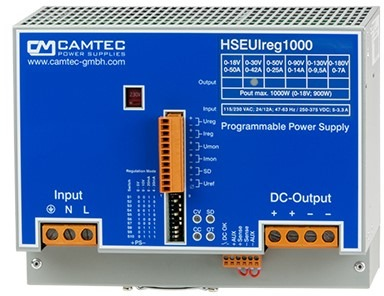

Power supply, 0 to 400 VDC, 3.2 A (0 to 3.2 A), 1000 W, HSEUIREG10001.400
Unit Price (€ / pc.)
1,737.6856 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
1,737.69 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,737.6856 €
Lab power supply DIN-rail, 3041085009CA, CAMTEC
This power supply is designed for power systems in the testing automation. Equipped with high-end capacitors of outstanding lifetime our power supplies guarantee a very long and reliable operation time. The internal protection circuits protect the power supply and the connected system, even in exceptional situations.
Features
- Real time voltage programming
- Real time & value C/V-monitoring
- Remote Shutdown
- Sense control 2V per load line
- Power Good Relay DC-ok
- Quick down programming option PS
- Precise dynamics on load change
- Series & parallel operation N+1
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 0 bis 400 VDC | |
| Ausgangsstrom | 3.2 A | |
| Breite | 200 mm | |
| Eingangsspannungsbereich | 90-132 VAC, 184-264 VAC, 250-375 VDC | |
| Höhe | 156 mm | |
| Leistung | 1000 W | |
| Schutzart (IP) | IP20 | |
| Tiefe | 115 mm | |
| Wirkungsgrad | 90 % | |
| Ausgangsstrombereich | 0 bis 3.2 A |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85043180 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
