HSEUREG04801.180 | CAMTEC

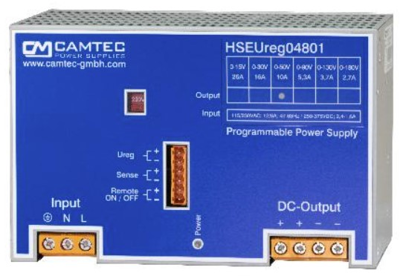

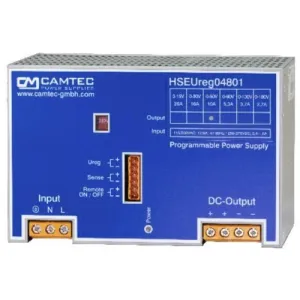

Power supply, programmable, 0 to 180 VDC, 2.7 A, 480 W, HSEUREG04801.180
Power supplies with programmable output voltage, type Camtec HSEUreg.
Programmable switching mode power supply, for rail mounting, electrically isolated, sustained short circuit-proof, surge and low voltage-proof, no burden required, supports serial and parallel operation, soft start and auto-recovery, sense mode, remote shutdown; Mains input: 90 to 132/184 to 265 VAC (selectable), 47 to 63 Hz, 250 to 375 VDC. Analog control voltage: 0 to 10 VDC or 0 to 20 mA. Connection: screw terminals. Efficiency: 90 %. Operating temperatures: –25 to +70 °C.
Output power 480 W, type HSEUreg04801.
Power failure backup: min. 50 ms. Dimensions: 200 x 130 x 114.5 mm. Weight: 2.9 kg.
Technical attributes (type, output voltage (programmable), output current, residual ripple): HSEUreg04801.180T, 0 to 180 VDC, 2.7 A, 300 mVpp
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 0 bis 180 VDC | |
| Ausgangsstrom | 2.7 A | |
| Breite | 200 mm | |
| Eingangsspannungsbereich | 90-132 VAC, 184-264 VAC, 250-375 VDC | |
| Höhe | 130 mm | |
| Leistung | 480 W | |
| Schutzart (IP) | IP20 | |
| Tiefe | 114.5 mm | |
| Wirkungsgrad | 90 % |
| Ursprungsland | DE |
| Zolltarifnummer | 85043180 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
