ESB00323B | CAMTEC

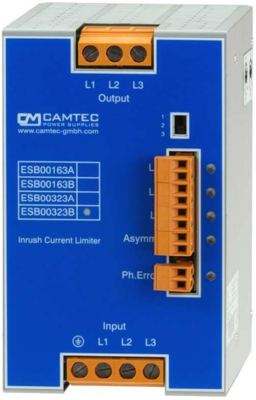

Inrush current limiter, 32 A, 200-500 VAC, ESB00323B
Unit Price (€ / pc.)
491.5771 € *
Available: 0 pcs.
Leadtime: 1 Week **
2/3-phase inrush current limiter, ESB00323B, CAMTEC
The ESB00323B is industrial rated peak current inrush limiter for high loads in LED-applications, complex automation systems and in the machine building. This product offers effective and interference free operation with capacitive loads. It is self- powering and does not require an external power supply. The units feature an integrated phase controller. It allows to monitor each AC line independent from each other. Also, each AC line is being limited independent from each other. The units allow precise accurate repeatable limiting of the peak inrush. This protects the installed circuit breakers from tripping accordingly.
Features
- Wall mount
- Integrated bypass relay
- Integrated over temperature protection
Technical specifications
| Connection | Spring terminals | |
| Version | inrush current limiter | |
| Assembly | DIN rail | |
| Rated current | 32 A | |
| Voltage | 200-500 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90328900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
