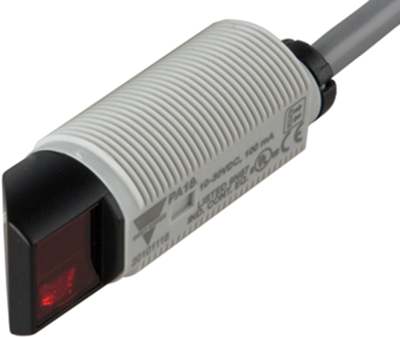

PA18CRT16 | Carlo Gavazzi
One way light barrier, 16 m, 10-30 VDC, cable connection, IP67, PA18CRT16
Order No.: 24G461
EAN: 5709870382234
MPN:
PA18CRT16
Unit Price (€ / pc.)
59.1668 € *
Available: 0 pcs.
Leadtime: On Request **
Photoelectric sensor, PD112CNB25BP, GAVAZZI
The PD112CNB25BP is part of a of inexpensive general purpose through-beam sensor in industrial standard 18 mm cylindrical ABS housing. The sensor is useful in applications where high-accuracy detection as well as small size is required. Compact housing and high power LED for excellent performance-size ratio. The potentiometer used for adjustment of the sensitivity make the sensors highly flexible. The output type is NPN or PNP and the output switching function is NO and NC.
Features
- Miniature sensor range
- Sensitivity adjustment by potentiometer
- LED indication for output, stability and power ON
- Excellent EMC performance
Technical specifications
| Connection | cable connection | |
| Activation time | 1 ms | |
| Version | one way light barrier | |
| Detecting distance | 16 m | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 16 mA |
Download
Logistics
| Country of origin | LT |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
