CTA5X200A5A | Carlo Gavazzi

Cable conversion current transformer, 200 A, for cables 24 mm, (W x H x D) 35 x 65.5 x 46 mm, CTA5X200A5A

Order No.: 30K3161
EAN: 8030956085716
MPN:
CTA5X200A5A
Series: CTA
CTA5X200A5A Carlo Gavazzi Power Converter
Image may differ
Unit Price (€ / pc.)
81.753 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
81.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
81.753 €

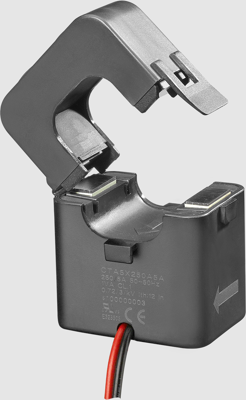

Split core current transformer, CTA5X200A5A, Carlo Gavazzi

Split core current transformer with compact dimensions, suitable for retrofit applications when used in combination with any energy meter with 5 A currents inputs.

It is the ideal solution for quick and easy installation without disconnecting cables during installation. It is indicated for any application (residential, commercial and industrial), especially for retrofitting where installing a solid core current transformer is not possible.

Features

  • Effective for a wide range of currents, it can be installed in existent applications
  • Fast installation
  • Cable length: 2 m
Technical specifications
Ausführung Kabelumbaustromwandler
Bemessungsstrom 200 A
Breite 35 mm
Gewicht 165 g
Höhe 65.5 mm
Kabeldurchmesser 24 mm
Tiefe 46 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85043129
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
