IBS04SF08M5PO | Carlo Gavazzi
Proximity switch, Flush mounting, 1 Form A (N/O), 30 V (DC), 100 mA, Detection range 0.8 mm, IBS04SF08M5PO
Unit Price (€ / pc.)
91.5824 € *
Available: 0 pcs.
Leadtime: On Request **

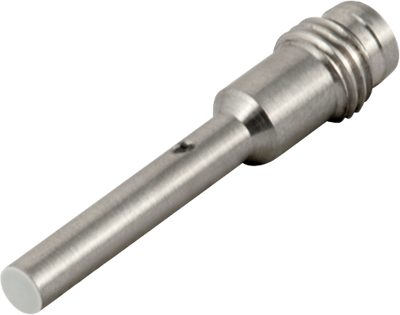

Inductive proximity switch, IBS04SF08M5PO, Carlo Gavazzi
The IBS04SF08M5PO is a miniaturized inductive proximity switch with IO-Link communication. This product represents the optimal solution for industrial automation equipment in applications where space is limited, including tool selection, robotic position-sensing and control of micro-mechanisms. On-board IO-Link communication opens up many possibilities, such as easy configuration and setup of the devices and advanced parameter setting.
Features
- High speed detection
- Easy to install
- High precision
- Integrated diagnostic function with flashing LED in the event of a short circuit or overload
Applications
- Non contact detection of metal objects in general position-sensing and presence-sensing in industrial applications
- Particularly suitable for rotational speed monitoring thanks to the high operating frequency
Technical specifications
| Connection | M8-connector | |
| Version | inductive sensor | |
| diameter | 4 mm | |
| Detection range | 0.8 mm | |
| Length | 38.2 mm | |
| Assembly | Flush mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
