IBS04SF15A2PO | Carlo Gavazzi

Proximity switch, Flush mounting, 1 Form A (N/O), 30 V (DC), 100 mA, Detection range 1.3 mm, IBS04SF15A2PO

Order No.: 28G1178
EAN: 5709870394213
MPN:
IBS04SF15A2PO
Series: IBS04
Carlo Gavazzi
IBS04SF15A2PO Carlo Gavazzi Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
84.609 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
84.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
84.609 €

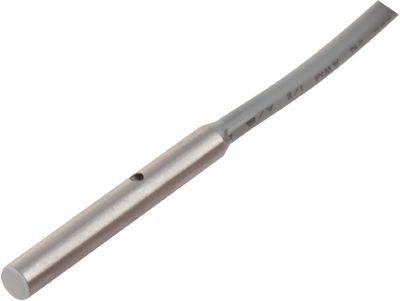

Inductive proximity switch, IBS04SF15A2PO, Carlo Gavazzi

The IBS04SF15A2PO is a miniaturized inductive proximity switch with IO-Link communication. This product represents the optimal solution for industrial automation equipment in applications where space is limited, including tool selection, robotic position-sensing and control of micro-mechanisms. On-board IO-Link communication opens up many possibilities, such as easy configuration and setup of the devices and advanced parameter setting.

Features

  • High speed detection
  • Easy to install
  • High precision
  • Integrated diagnostic function with flashing LED in the event of a short circuit or overload

Applications

  • Non contact detection of metal objects in general position-sensing and presence-sensing in industrial applications
  • Particularly suitable for rotational speed monitoring thanks to the high operating frequency
Technical specifications
Connection cable connection
Version inductive sensor
diameter 4 mm
Detection range 1.3 mm
Length 28.2 mm
Assembly Flush mounting
Latching switching function 1 Form A (N/O)
Switching Voltage (DC) 30 V
switching current 100 mA
Degree of protection (IP) IP67
Logistics
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
