MC88CH1O1CRM5L | Carlo Gavazzi

Magnet sensor, surface mounting, 1 Form A (N/O) + 1 Form B (N/C), 6 W, 24 V (DC), 250 mA, Detection range 18-30 mm, MC88CH1O1CRM5L

Order No.: 28G1659
EAN: 5709870402475
MPN:
MC88CH1O1CRM5L
Series: MC88C
Carlo Gavazzi
MC88CH1O1CRM5L Carlo Gavazzi Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
55.0494 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
55.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
55.0494 €

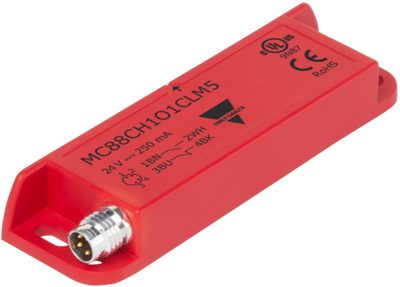

Safety magnetic sensor, MC88CH1O1CRM5L, Carlo Gavazzi

The MC88CH1O1CRM5L is a safety magnetic sensor with rectangular housing used to monitor the position of hinged, sliding or removable guards of industrial applications. This safety sensor stop or disconnect the dangerous motions, if the mobile protections are opened or displaced.

It is suitable for safety gates applications up to safety category 4, with suitable logic safety module. This product is the right answer in harsh industrial environments with damp and dusty condition.

Features

  • Actuation without mechanical contact for high durability in all environmental conditions
  • Suitable for applications with large tolerances or where mechanical features may change over the time, thanks to the wide actuation range
  • Completely sealed
  • High performance
  • With LED
Technical specifications
Connection M8-connector
Version magnet sensor
Detection range 18-30 mm
Length 88 mm
Assembly surface mounting
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Breaking capacity 6 W
Switching Voltage (AC) 24 V
Switching Voltage (DC) 24 V
switching current 250 mA
Degree of protection (IP) IP67/IP69K
Logistics
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
