RM1A48A100 | Carlo Gavazzi
Solid state relay, 20-280 VAC, zero voltage switching, 100 A, DIN rail, RM1A48A100
Order No.: 30G8890
EAN: 5350035320822
MPN:
RM1A48A100
Unit Price (€ / pc.)
142.2645 € *
Available: 0 pcs.
Leadtime: 1 Week **

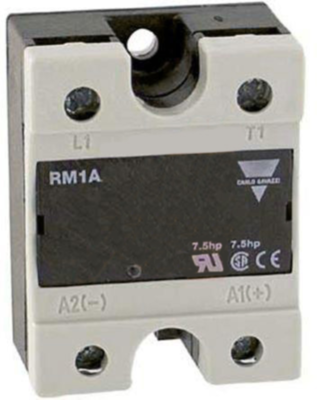

Solid state relay, RM1A48A100, Carlo Gavazzi
The industrial, 1-phase relay with antiparallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities. The relay can be used for resistive, inductive and capacitive loads. The zero switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The instant-on relay with DC control input can be used for phase control. The builtin varistor secures transient protection for the heavy industrial applications, and the LED indicates the status of the control input.
Features
- Clip-on IP 20 protection cover
- Self-lifting terminals
- Housing free of moulding mass
- Direct copper bonding (DCB) technology
Technical specifications
| Assembly | DIN-Schiene | |
| Rated current | 100 A | |
| Switching Mode | nullspannungsschaltend | |
| Control Voltage | 20-280 VAC |
Download
Logistics
| Country of origin | MT |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
