DCB51CM24 | Carlo Gavazzi

Multifunction relay, 0.1 s to 100 h, 2 functions, 1 Form C (NO/NC), 240 VAC, 5 A/24 VDC,240 VAC, DCB51CM24

Order No.: 27G4107
EAN: 8030956002171
MPN:
DCB51CM24
Series: DCB51
Carlo Gavazzi
DCB51CM24 Carlo Gavazzi Time Relays
Image may differ
Print
Key Specification:
Time display 0.1 s to 100 h
Function 2 functions
Contact type 1 Form C (NO/NC)
Voltage 240 VAC
Breaking capacity 5 A/24 VDC,240 VAC
Download Datasheet Technical specifications
Unit Price (€ / pc.)
127.7465 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
127.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
127.7465 €
Description
Technical specifications
Download
Logistics
Compliance

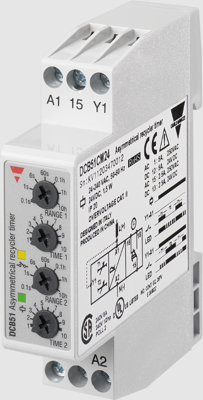

Multifunction time relay, DCB51CM24, Carlo Gavazzi

Combined function timer with asymmetrical recycler ON or OFF first selectable by connection between pins A1 and Y1. Individual selection of the time ranges from 0.1 s to 100 h. For mounting on DIN-rail.

Features

  • 2 selectable functions
  • Selection of time range by front knobs
  • Knob adjustable time setting
  • Automatic start
  • 17.5 mm DIN-rail housing
Technical specifications
Connection screw connection
Function 2 functions
Contact type 1 Form C (NO/NC)
Breaking capacity 5 A/24 VDC,240 VAC
Voltage 240 VAC
Time display 0.1 s to 100 h
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 90318080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
