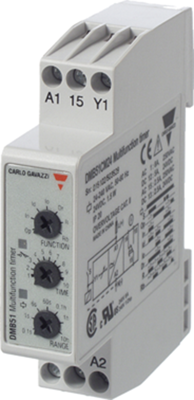

DMB51CW24 | Carlo Gavazzi
Multifunction relay, 0.1 s to 100 h, 7 functions, 1 Form C (NO/NC), 24-240 VDC, 5 A/240 VAC, DMB51CW24
Multifunctional timer relays for DIN rail, type Gavazzi DMB 51.
For series installation on DIN rail, 7 functions (response delay, On and/or Off wiping function, release delay, pulse or pause triggered clock generator), 7 selectable time ranges from 0.1 s to 100 h (rotary switch adjustment), automatic or manual start, LED function displays of the relay status and operating voltage (ON); Output: 1 CO. Operating voltage: 12 to 240 V AC/DC. Contact rating (resistance load): 5.0 A/250 VAC (AC 1), 5.0 A/24 VDC (DC 12). Adjustment tolerance: max. 5.0 %. Repetition accuracy: max. 0.2%. Operating power: 4.0 VA (AC), 1.5 W (DC). On delay: max. 100 ms. Degree of protection: IP 20. Degree of soiling: 2. Operating temperatures: –20 to +60 °C. Certifications: UL, CSA.
Type: DMB 51 C W24, multifunctional timer relay
| Connection | screw connection | |
| Function | 7 functions | |
| Contact type | 1 Form C (NO/NC) | |
| Breaking capacity | 5 A/240 VAC | |
| Voltage | 24-240 VDC | |
| Time display | 0.1 s to 100 h |
| Country of origin | IT |
| Customs tariff number | 90318080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
