2N3440 | CDIL

Bipolar junction transistor, NPN, 1 A, 250 V, THT, TO-39, 2N3440

Order No.: 27S2750
EAN: 4099879030337
MPN:
2N3440
Series: 2N3
CDIL
2N3440 CDIL Bipolar Transistors

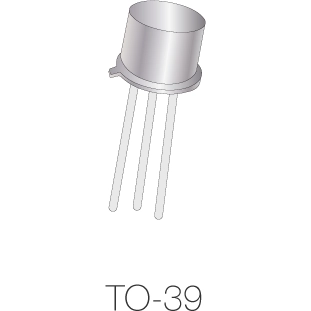

Image may differ
Print
Key Specification:
Assembly THT
Enclosure TO-39
Version NPN
Saturation voltage 500 mV
Collector current 1 A
Show 7 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.595 € *
Available: 363 pcs.
Leadtime: On Request **
Total Price:
0.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.595 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

NPN transistor, 2N3440, CDIL

The 2N3440 silicon transistor is designed for use as high voltage and high power amplifier.
Technical specifications
Version NPN
Enclosure TO-39
max. operating temperature 200 °C
max.voltage between collector and base Vcbo 300 V
max.voltage between collector and emitter Vceo 250 V
min. operating temperature -65 °C
Assembly THT
Rated current 1 A
Saturation voltage 500 mV
Transit frequency fTmin 10 MHz
Power dissipation 1 W
Collector current 1 A
Max DC amplification 160 mA
Min DC gain 40 mA
Show similar products 0
Logistics
Country of origin IN
Customs tariff number 85412900
Original Packaging Bulk with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
