BC160-16 | CDIL

Bipolar junction transistor, PNP, 1 A, 40 V, THT, TO-39, BC160-16

Order No.: 11S4250
EAN: 4099879026521
MPN:
BC160-16
CDIL
BC160-16 CDIL Bipolar Transistors

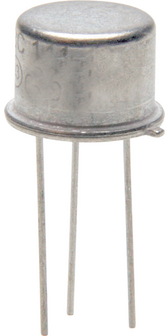

Image may differ
Print
Key Specification:
Assembly THT
Enclosure TO-39
Version PNP
Saturation voltage 1 V
Collector current 1 A
Show 3 variants
Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description
Technical specifications
Download
Logistics
Compliance
Variations

PNP transistor, BC160-16, CDIL

The BC160-16 PNP silicon power switching transistor is designed for use as medium power amplifier and switching applications.
Technical specifications
Version PNP
Enclosure TO-39
max. operating temperature 200 °C
max.voltage between collector and base Vcbo 40 V
max.voltage between collector and emitter Vceo 40 V
min. operating temperature -65 °C
Assembly THT
Rated current 1 A
Saturation voltage 1 V
Transit frequency fTmin 50 MHz
Power dissipation 0.8 W
Collector current 1 A
Max DC amplification 250 mA
Min DC gain 100 mA
Show similar products 0
Logistics
Country of origin IN
Customs tariff number 85412900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
