BC178B | CDIL

Name: Bipolar junction transistor, PNP, 200 mA, 25 V, THT, TO-18, BC178B
Brand: CDIL
SKU: 11S5400
Price: 0.33 EUR
Availability: OutOfStock

Bipolar junction transistor, PNP, 200 mA, 25 V, THT, TO-18, BC178B

Order No.: 11S5400

EAN: 4099879026583

MPN:

BC178B

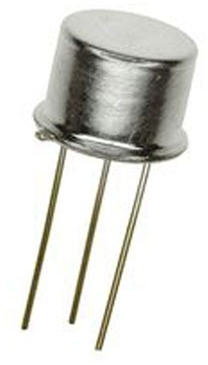

Image may differ

Key Specification:

Assembly THT

Enclosure TO-18

Version PNP

Saturation voltage 600 mV

Collector current 200 mA

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3332 € *

Available: 0 pcs.

Leadtime: 6 Weeks **

Add to Cart

Total Price:

0.33 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

PNP transistor, BC178B, CDIL

This PNP silicon planar transistor is designed for use as low noise audio general purpose audio amplifier.

Technical specifications

	Version	PNP
	Enclosure	TO-18
	max. operating temperature	200 °C
	max.voltage between collector and base Vcbo	30 V
	max.voltage between collector and emitter Vceo	25 V
	min. operating temperature	-65 °C
	Assembly	THT
	Rated current	200 mA
	Saturation voltage	600 mV
	Transit frequency fTmin	200 MHz
	Power dissipation	0.3 W
	Collector current	200 mA
	Max DC amplification	460 mA
	Min DC gain	180 mA
