BD439 | CDIL

Name: Bipolar junction transistor, NPN, 4 A, 60 V, THT, TO-126, BD439
Brand: CDIL
SKU: 14S3600
Price: 1.31 EUR
Availability: InStock

Bipolar junction transistor, NPN, 4 A, 60 V, THT, TO-126, BD439

Order No.: 14S3600

EAN: 4099879028211

MPN:

BD439

Image may differ

Key Specification:

Assembly THT

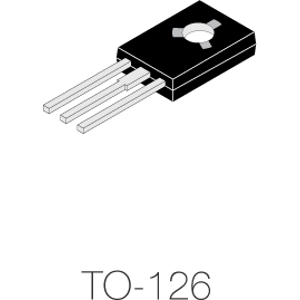

Enclosure TO-126

Version NPN

Saturation voltage 1.4 V

Collector current 4 A

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.3090 € *

Available: 101 pcs.

Available in 5 Days: 2,350 pcs.

Leadtime: 12 Weeks **

Total Price:

1.31 € *

Price list

Quantity

Price per unit*

1 pcs.

1.3090 €

10 pcs.

0.9520 €

100 pcs.

0.7973 €

500 pcs.

0.7259 €

1000 pcs.

0.6664 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

NPN transistor, BD439, CDIL

This NPN epitaxial silicon power transistors intended for use in medium power linear and switching applications.

Technical specifications

	Version	NPN
	Enclosure	TO-126
	max. operating temperature	150 °C
	max.voltage between collector and base Vcbo	60 V
	max.voltage between collector and emitter Vceo	60 V
	min. operating temperature	-65 °C
	Assembly	THT
	Rated current	4 A
	Saturation voltage	1.4 V
	Transit frequency fTmin	3 MHz
	Power dissipation	36 W
	Collector current	4 A
	Min DC gain	20 mA
