SMR8621520 | Celduc Relais

Reversing contactor, 5 A, coil 12-30 VDC, screw connection, SMR8621520

Order No.: 31G1230
EAN: 3760283306677
MPN:
SMR8621520
Series: SMR
SMR8621520 Celduc Relais Contactors

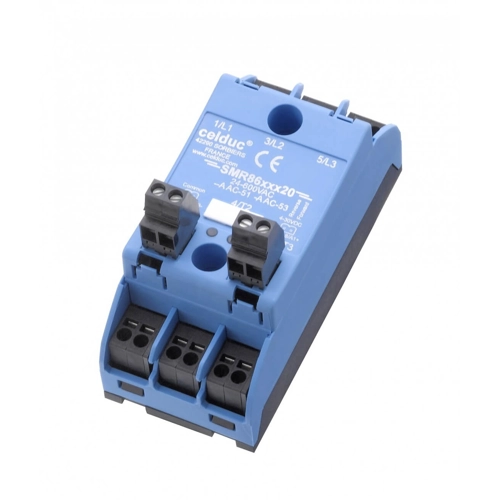

Image may differ
Unit Price (€ / pc.)
256.7782 € *
Available: 0 pcs.
Available in 5 Days: 151 pcs.
Leadtime: On Request **
Total Price:
2,567.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
256.7782 €

Solid state relay, SMR8621520, Celduc Relais

Zero cross solid state relay especially designed to control and reverse the direction of three phase motors (2.2 kW max). It offers protection on input (interlocking, temporisation between each reverse) and output (RC+VDR).

Features

  • Green LED visualization on the input
  • Double Push-in spring power terminals
  • Designed in conformity with IEC/ EN60947-4-2
  • Built in IP20

Applicatons

  • (AC-3 / LC B) Motors
Technical specifications
Connection Schraubanschluss
Version Wendeschütz
rated voltage (AC) 520 V
Assembly Chassismontage
Rated current 5 A
Degree of protection (IP) IP20
Control Voltage 12-30 VDC
Logistics
Country of origin FR
Customs tariff number 85365003
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
