PBA13725 | Celduc Relais

Proximity switch, built-in mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.4 A, Detection range 15-45 mm, PBA13725

Order No.: 45P4534
EAN: 3760283305076
MPN:
PBA13725
Series: PBA
Celduc Relais
PBA13725 Celduc Relais Proximity Switches, Reed switches

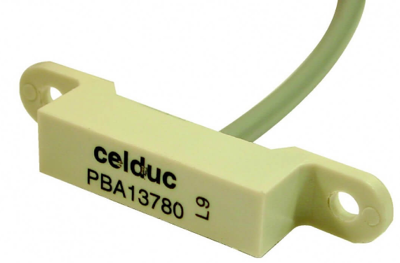

Image may differ
Unit Price (€ / pc.)
24.395 € *
Available: 0 pcs.
Available in 5 Days: 36 pcs.
Leadtime: On Request **
Total Price:
24.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
24.395 €

Miniature standard proximity, PBA13725, Celduc Relais

Miniature standard proximity sensor with 1 Form A (N/O).

Technical specifications
Connection cable connection 2.5 m
Version magnet sensor
Detection range 15-45 mm
Length 51 mm
Assembly built-in mounting
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (AC) 110 V
Switching Voltage (DC) 200 V
switching current 0.4 A
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
