PTA12401 | Celduc Relais

Proximity switch, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, Detection range 14 mm, PTA12401

Order No.: 45P4594
EAN: 3760283304628
MPN:
PTA12401
Series: PTA
Celduc Relais
PTA12401 Celduc Relais Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
12.5188 € *
Available: 0 pcs.
Available in 5 Days: 45 pcs.
Leadtime: On Request **
Total Price:
12.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
12.5188 €

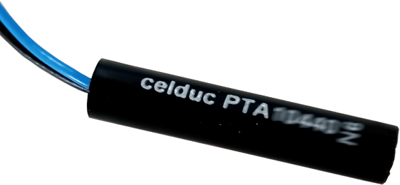

Magnetic proximity sensor, PTA12401, Celduc Relais

Magnetic proximity sensor with 1 normally open contact.

Technical specifications
Connection stranded wires
Version proximity sensor
diameter 6 mm
Detection range 14 mm
Length 30 mm
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (AC) 48 V
Switching Voltage (DC) 200 V
switching current 0.5 A
Degree of protection (IP) IP67
Contact resistance 100 mΩ
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
