SGTR8690510 | Celduc Relais
Solid state relay, 4-30 VDC, zero voltage switching, 24-520 VAC, 32 A, panel mounting, SGTR8690510
Unit Price (€ / pc.)
379.8004 € *
Available: 0 pcs.
Available in 5 Days: 65 pcs.
Leadtime: On Request **

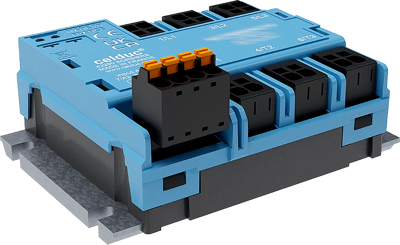

Solid state relay, SGTR8690510, Celduc Relais
Three-phase zero cross solid state relay especially designed for most types of loads (AC-1 and AC-3). It offers over-voltage protection at the input (transil) and output (RC + VDR).
Features
- Back to back thyristors on output with TMS² technology for a long-lifespan
- Direct copper bonding (DCB) technology
- Green LED visualization of the inputs
- Designed in compliance with IEC/ EN60947-4-3 and IEC/EN60947-4-2 ; IEC 62314
- Built in IP20
Applicatons
- Heating elements
- Discharge lamps
- LEDs
- Electrovalves and electromagnets
Technical specifications
| LED display | Yes | |
| Assembly | panel mounting | |
| Rated current | 32 A | |
| Switching Mode | zero voltage switching | |
| Voltage V RRM (peak reverse voltage) | 1.6 kV | |
| Voltage | 24-520 VAC | |
| Control Voltage | 4-30 VDC |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
