SGTR9854310-WF031 | Celduc Relais
Solid state relay, 4-30 VDC, zero voltage switching, 24-660 VAC, 41 A, DIN rail, SGTR9854310-WF031
Unit Price (€ / pc.)
578.6256 € *
Available: 0 pcs.
Available in 5 Days: 17 pcs.
Leadtime: On Request **

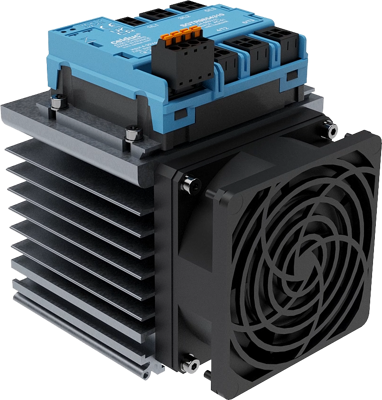

Solid state contactor, SGTR9854310-WF031, Celduc Relais
Three-phase zero cross solid state contactor especially designed for AC-1 resistive loads. This ready-to-use is equipped with a fan and a security thermostat. It offers over-voltage protection at the input (transil) and output (TVS).
Features
- Back to back thyristors on output with TMS² technology for a long-lifespan
- Direct copper bonding (DCB) technology
- Green LED visualization of the input
- Designed in compliance with IEC/ EN60947-4-3 and IEC/EN60947-4-2 ; IEC 62314
- Built in IP20
Applicatons
- Heating elements
Technical specifications
| LED display | Yes | |
| Assembly | DIN rail | |
| Rated current | 41 A | |
| Switching Mode | zero voltage switching | |
| Voltage V RRM (peak reverse voltage) | 1.6 kV | |
| Voltage | 24-660 VAC | |
| Control Voltage | 4-30 VDC |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
