C.A 1550 | Chauvin Arnoux
Chauvin Arnoux Micromanometer, C.A 1550, P01654550
Order No.: 21K7001
EAN: 3663653008273
MPN:
C.A 1550
P01654550
Unit Price (€ / pc.)
575.96 € *
Available: 0 pcs.
Leadtime: 1 Week **

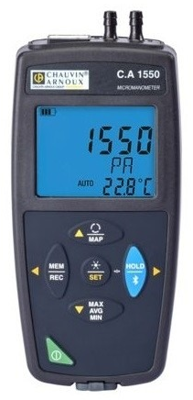

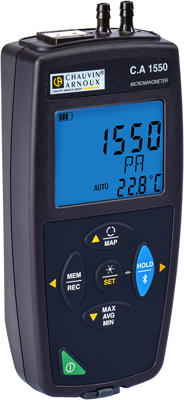

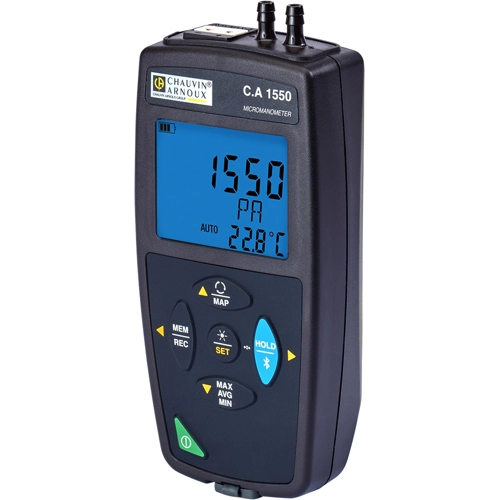

Micromanometer, C.A 1550, Chauvin Arnoux
The CA 1550 micromanometer can be used to check the operation of ventilation and air-conditioning installations, etc.
This compact, ergonomic instrument can be used in various ways: handheld, fixed magnetically to a metal panel, suspended, placed on a flat surface or hooked by means of the Multifix accessory.
Features
- Differential air pressure, air speed and air flow rate
- Manual or automatic temperature compensation
- Atmospheric pressure compensation
- Diagram display in MAP mode
Technical specifications
| Auflösung | 0,1 Pa | |
| Ausführung | Mikromanometer | |
| Genauigkeit | ±0,5 % | |
| Luftgeschwindigkeit | 2 bis 60 m/s | |
| max. Temperatur | 50 °C | |
| Messbereich | -2450 bis 2450 Pa | |
| min. Temperatur | -10 °C | |
| Relative Luftfeuchtigkeit | 10 % bis 90 % |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| SVHC frei | Yes |
