C.A 1623 | Chauvin Arnoux

C.A 1623 Calibrator Temperature PT

Order No.: 21K7192
EAN: 3760171417539
MPN:
C.A 1623

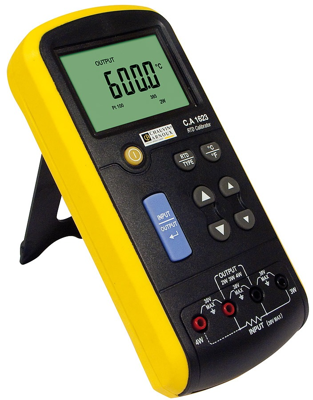

C.A 1623 Chauvin Arnoux Calibrators Image 1

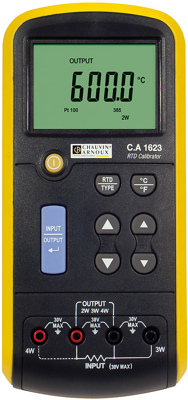

C.A 1623 Chauvin Arnoux Calibrators Image 2

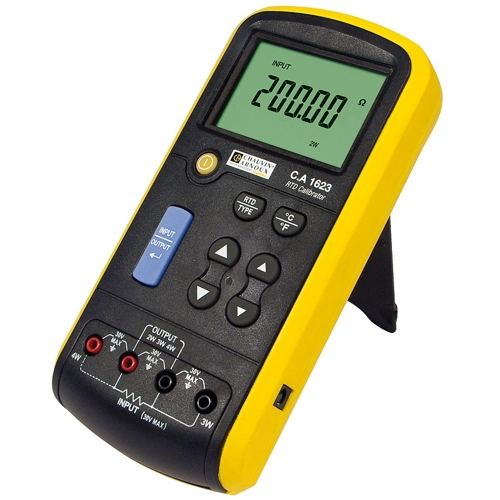

C.A 1623 Chauvin Arnoux Calibrators Image 3
Image may differ
Unit Price (€ / pc.)
1,149.54 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,149.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,149.54 €

Temperature Calibrator, C.A 1623, Chauvin Arnoux

The Chauvin Arnoux CA1623 RTD Temperature Calibrator can be used for the calibration of RTD platinum probes of the following types: Pt 10, Pt 50, Pt 100, Pt 200, Pt 500, Pt 1000 and Pt 100(JIS). It uses both simulation and measurement to measure, generate and simulate both temperature (-200˚C to 800˚C max) and resistance (0 to 3200Ω), thus also allowing the calibration of resistors. Both simulation and measurement are extremely accurate and precise so the user can have confidence when calibrating.

Technical Data

  • Temperature calibration min: -200˚C
  • Temperature calibration max: 800˚C
  • Resistance calibration: 0 to 3200 Ω
Technical specifications
Product type Widerstandsfühler-Kalibrator
measurement range 0-3200 Ω
Resolution 0,01 mV
Voltage 30 V
min. operating temperature -200 °C
max. operating temperature 800 °C
Length 205 mm
Width 97 mm
Depth 45 mm
Logistics
Country of origin CN
Customs tariff number 90312000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
