E27 | Chauvin Arnoux

Name: AC/DC current clamp E27, 100 A (DC), 100 A (AC), opening 12 mm, CAT III 600 V, CAT IV 300 V
Brand: Chauvin Arnoux
SKU: 21K7211
Price: 506.94 EUR
Availability: InStock

AC/DC current clamp E27, 100 A (DC), 100 A (AC), opening 12 mm, CAT III 600 V, CAT IV 300 V

Order No.: 21K7211

EAN: 3663653007757

MPN:

E27

P01120027

Image may differ

Key Specification:

Ausführung AC/DC-Stromzange

Echteffektivwertmessung (TRMS) möglich No

Zangenöffnung 12 mm

Überspannungskategorie CAT III 600 V, CAT IV 300 V

max. Strommesswert (bei DC) 100 A

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

506.94 € *

Available: 1 pcs.

Leadtime: 1 Week **

Total Price:

506.94 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

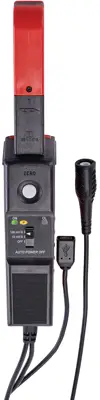

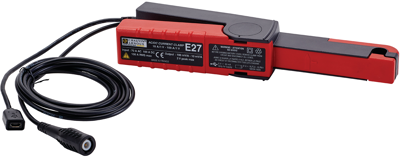

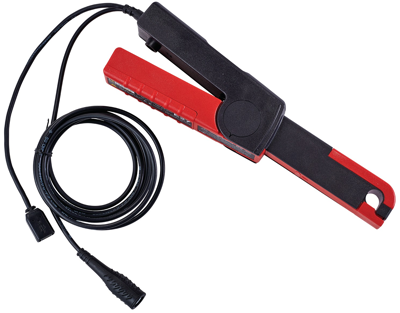

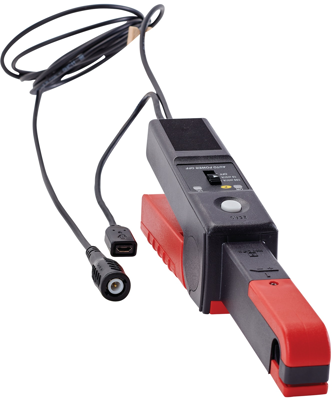

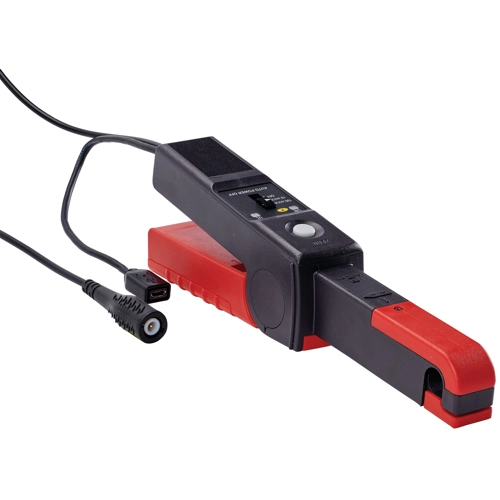

Current clamp, E27, Chauvin Arnoux

The E27 clamp is an insulated current sensor using Hall-effect technology to view the waveform and amplitude of DC and AC currents.

It offers 2 sensitivities for measuring currents up to 100 A with a 100 kHz bandwidth.

The E27 clamp is powered by battery or by a standard 5 V DC mains adapter via its µUSB interface and offers automatic DC Zero adjustment and an automatic power-off function.

Technical specifications

	Ausführung	AC/DC-Stromzange
	Echteffektivwertmessung (TRMS) möglich	No
	max. Messwert (Frequenz)	100 kHz
	max. Strommesswert (bei AC)	100 A
	max. Strommesswert (bei DC)	100 A
	Überspannungskategorie	CAT III 600 V, CAT IV 300 V
	Zangenöffnung	12 mm
