MA4000D-350 | Chauvin Arnoux
TRMS AC current clamp MA4000D-350, 400 A (AC), 600 V (DC), 600 V (AC), opening 100 mm, CAT IV 600 V
Order No.: 21K7116
EAN: 3760171417836
MPN:
MA4000D-350
P01120577Z
Unit Price (€ / pc.)
279.65 € *
Available: 0 pcs.
Leadtime: 1 Week **
Current Meter, MA4000D-350, Chauvin Arnoux

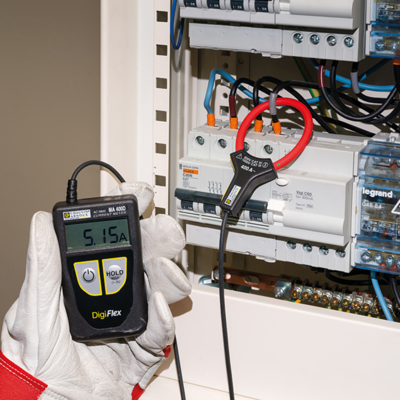

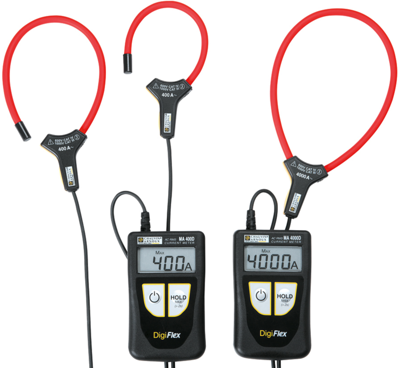

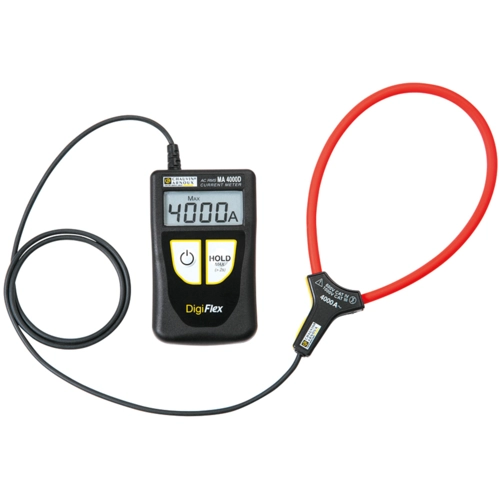

MA400D and MA4000D DigiFLEX current testers are equipped with flexible current sensors connected to a compact casing and can be used comfortably in any electrical cabinet for applications up to 600 V CAT IV. These stand-alone instruments are equipped with a 4,000-count digital display for direct current readings. Simple to set up thanks to the sensor-closing system, DigiFLEX current testers also benefit from the magnetized Multifix mounting system allowing them to be positioned anywhere. In addition, a strap is supplied to make it easier to stow the DigiFLEX.
Technical Data
- Surge voltage category: CAT IV 600 V
- TRMS possible: Yes
- max. measured current value (AC): 400 A
- max. voltage measuring range (AC): 600 V
- max. measured value (frequency): 1.000 Hz
Technical specifications
| Ausführung | AC-Stromzange | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| max. Messwert (Frequenz) | 3 kHz | |
| max. Strommesswert (bei AC) | 400 A | |
| min. Messwert (Frequenz) | 10 Hz | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT IV 600 V | |
| Zangenöffnung | 100 mm |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 90303100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
