MN73 | Chauvin Arnoux

Name: AC current clamp adapter MN73, 200 A (DC), opening 20 mm, CAT III 600 V, CAT IV 300 V
Brand: Chauvin Arnoux
SKU: 21K7148
Price: 440.30 EUR
Availability: OutOfStock

AC current clamp adapter MN73, 200 A (DC), opening 20 mm, CAT III 600 V, CAT IV 300 V

Order No.: 21K7148

EAN: 3760171412978

MPN:

MN73

Image may differ

Key Specification:

Version AC current clamp adapter

Pliers opening 20 mm

Surge voltage category CAT III 600 V, CAT IV 300 V

max. measured current value (DC) 200 A

Download Datasheet Technical specifications

Unit Price (€ / pc.)

440.30 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Add to Cart

Total Price:

440.30 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

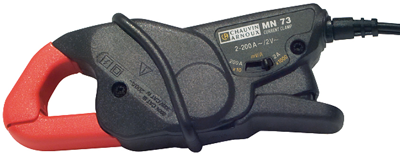

Clamp meter adapter, MN73, Chauvin Arnoux

The ergonomic MN-pliers are designed to measure low and medium currents from 0.01 A to 240 A AC.

The shape of the jaws makes it very easy to attach to cables, even in places that are difficult to access. They enclose conductors with a diameter of up to 20 mm.

Features

Measurement of small currents from 0.01 A.
Measurement range up to 200 A.
Ergonomic pliers head

Technical specifications

	Version	AC current clamp adapter
	max. measured value (frequency)	10 kHz
	max. measured current value (DC)	200 A
	min. Measured value (frequency)	40 Hz
	Surge voltage category	CAT III 600 V, CAT IV 300 V
	Pliers opening	20 mm
