PEL 103 + MINIFLEX | Chauvin Arnoux

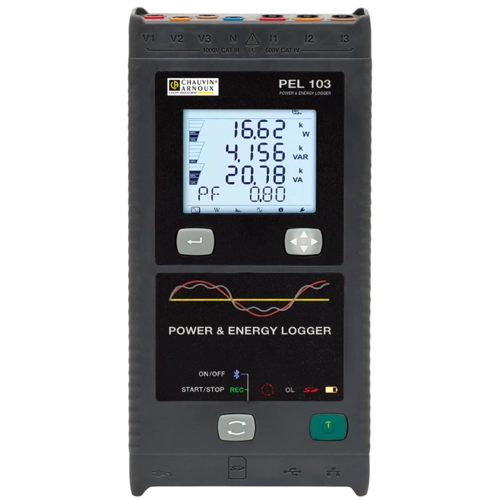

Power and energy recorder, LCD display, 10-1000 V, 5 mA-1.4 kA, (L x W x H) 256 x 125 x 37 mm, PEL 103 + MINIFLEX

Order No.: 21K7126
EAN: 3760171418086
MPN:
PEL 103 + MINIFLEX
P01157151
PEL 103 + MINIFLEX Chauvin Arnoux Energy Measurement Image 1
PEL 103 + MINIFLEX Chauvin Arnoux Energy Measurement Image 2
PEL 103 + MINIFLEX Chauvin Arnoux Energy Measurement Image 3
PEL 103 + MINIFLEX Chauvin Arnoux Energy Measurement Image 4
PEL 103 + MINIFLEX Chauvin Arnoux Energy Measurement Image 5
Image may differ
Unit Price (€ / pc.)
2,682.26 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,682.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,682.26 €

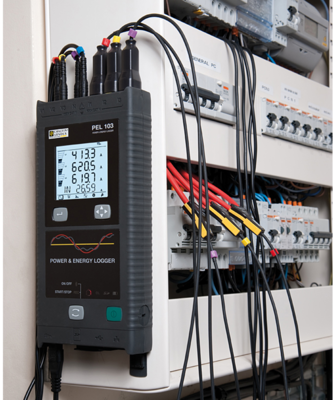

Ergonomic, magnetized and suitable for all types of cabinets, PEL103 loggers provide all the power and energy measurements simultaneously.

Single-phase, split-phase and three-phase installations with or without a neutral, as well as other complex configurations.

Implementation without cutting off the mains power supply

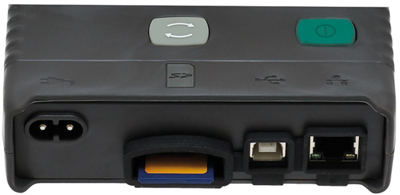

BlueTooth, Ethernet and USB communication

Automatic recognition of the sensors connected

Recording on SD and SD-HC cards

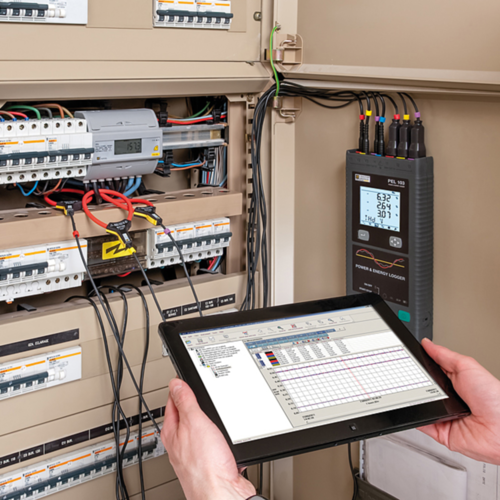

Real-time communication with a PC and analysis using PEL Transfer software

Other specifications:

Voltage up to 1,000 V

Current up to 10,000 A

Voltage ratio / current ratio up to 650,000 V / up to 25,000 A

Power from 10 W/var/VA to 10 GW/Gvar/GVA

Energy up to 4EWh / 4 EVAh / 4 Evarh

Phase: cos φ, tan Φ, PF

Harmonics up to 50th order

2 GB SD memory card (SD-HC card up to 32 GB)

Technical specifications
Product type Leistungs- und Energierecorder
Version LCD Display
measurement range 10-1000 V, 5 mA-1,4 kA
Length 256 mm
Width 125 mm
Height 37 mm
Weight 950 g
Logistics
Country of origin FR
Customs tariff number 90308400
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
