C.A 5273 | Chauvin Arnoux
TRMS digital multimeter C.A 5273, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 100 pF to 60 mF, CAT III 1000 V, CAT IV 600 V
Order No.: 21K7108
EAN: 3760171417645
MPN:
C.A 5273
P01196773
Unit Price (€ / pc.)
360.57 € *
Available: 0 pcs.
Leadtime: 1 Week **

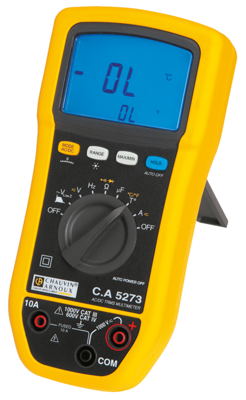

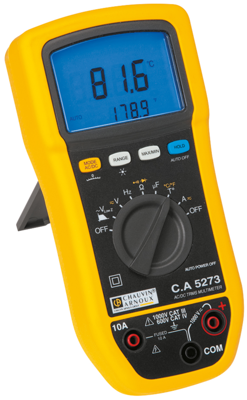

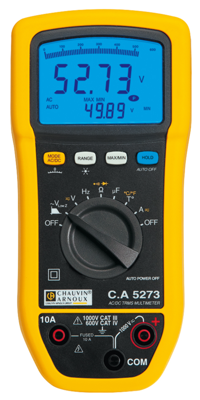

The C.A 5273 is a comprehensive multimeter for electrical maintenance of installations and small AC and DC machines, with a double 6,000-count backlit display and a 61+2-segment bargraph with remanent effect.
Its 600V CAT IV safety is backed by IP54 ingress protection.
Designed and manufactured in France by CHAUVIN ARNOUX, this multimeter comes with a 3-year warranty.
CAT IV 600V / CAT III 1,000V
TRMS measurements
Bi-mode double 6,000-count backlit display and 61+2-segment bargraph (full scale / central zero)
Auto AC/DC selection
Automatic or manual range selection
VLowZ low-impedance voltage measurement with low-pass filter
1,000 V
10 A
Resistance / audible continuity
Temperature
Capacitance
Max / Min storage
3-year warranty
Technical specifications
| Anzeige Digits | 60000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 100 pF bis 60 mF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 60 MΩ | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 90303100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
