C.A 5277 | Chauvin Arnoux

TRMS digital multimeter C.A 5277, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 100 pF to 60 mF, CAT III 1000 V, CAT IV 600 V

Order No.: 21K7109
EAN: 3760171417669
MPN:
C.A 5277
P01196777
Chauvin Arnoux

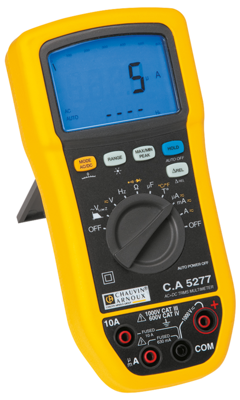

C.A 5277 Chauvin Arnoux Multimeters Image 1

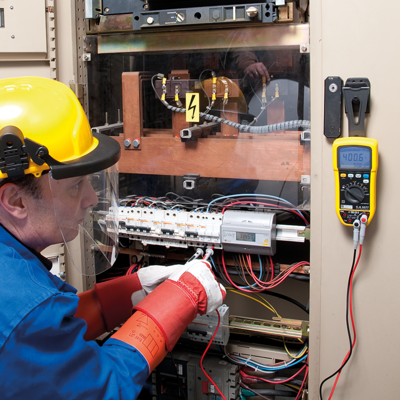

C.A 5277 Chauvin Arnoux Multimeters Image 2

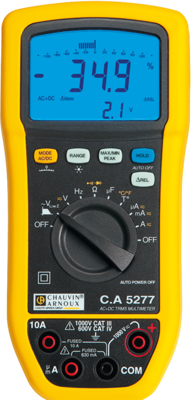

C.A 5277 Chauvin Arnoux Multimeters Image 3

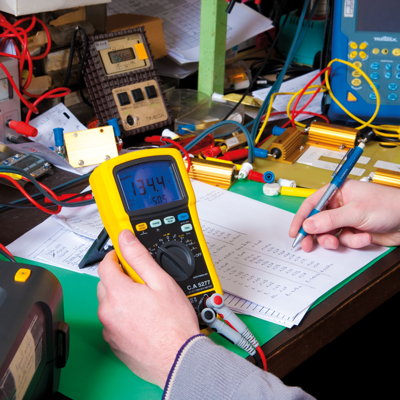

C.A 5277 Chauvin Arnoux Multimeters Image 4

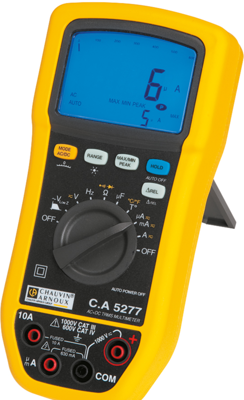

C.A 5277 Chauvin Arnoux Multimeters Image 5
Image may differ
Unit Price (€ / pc.)
448.63 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
448.63 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
448.63 €

The comprehensive C.A 5277 multimeter is equipped with all the functions needed for testing, maintenance and inspections

With its high-speed 12-bit converter, the C.A 5277 performs 5 TRMS AC+DC measurements per second with high accuracy whatever the form or type of the signal.

TRMS AC+DC measurement of voltage and current

12-bit converter

5 measurements / second

CAT IV 600V / CAT III 1000V

IP54

Double 6,000-count backlit display

Bi-mode bargraph with 61+2 segments (full scale/central zero)

Automatic or manual range selection

VLowZ low-impedance voltage measurement with low-pass filter

1,000 V / 10 A

10 µV resolution

Current from 1 µA

Measurement of ionization currents

Resistance / audible continuity

Temperature / Capacitance

μA range for ionization current measurement

Min / MAX (100 ms)

Peak+ / Peak- (1 ms)

Differential measurements (&Delta X) et RELative (&Delta X/X%)

3-year warranty

Technical specifications
Display Digits 60000
Version digital multimeter
TRMS possible Yes
Capacity range 100 pF to 60 mF
max. measured current value (AC) 10 A
max. measured current value (DC) 10 A
max. resistance range 60 MΩ
max. voltage measuring range (AC) 1000 V
max. voltage measuring range (DC) 1000 V
Surge voltage category CAT III 1000 V, CAT IV 600 V
Logistics
Country of origin FR
Customs tariff number 90303100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
