C.A 5292-BT | Chauvin Arnoux

Name: TRMS color graphics multimeter C.A 5292-BT, 20 A(DC), 20 A(AC), 1000 VDC, 1000 VAC, 1 nF to 10 mF, CAT III 1000 V, CAT IV 600 V
Brand: Chauvin Arnoux
SKU: 21K7180
Price: 957.95 EUR
Availability: OutOfStock

TRMS color graphics multimeter C.A 5292-BT, 20 A(DC), 20 A(AC), 1000 VDC, 1000 VAC, 1 nF to 10 mF, CAT III 1000 V, CAT IV 600 V

Order No.: 21K7180

EAN: 3663653005647

MPN:

C.A 5292-BT

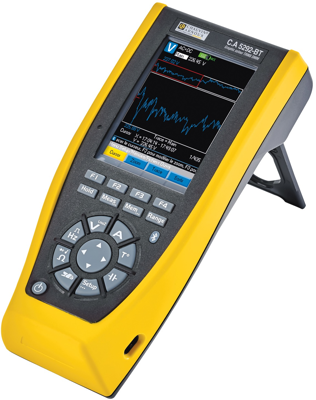

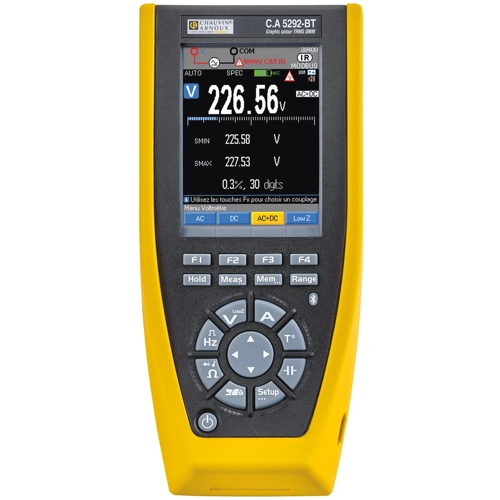

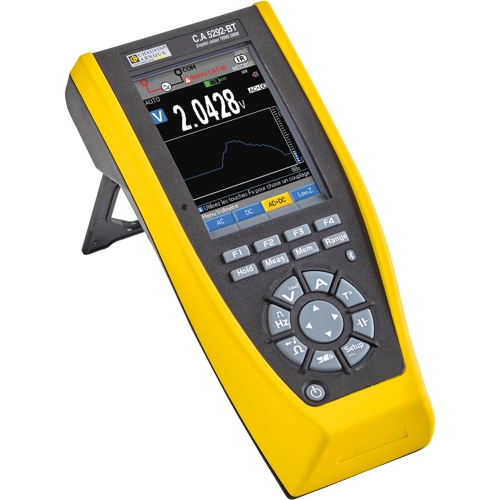

C.A 5292-BT Chauvin Arnoux Multimeters Image 3

Image may differ

Key Specification:

Ausführung Digital-Multimeter

Echteffektivwertmessung (TRMS) möglich Yes

max. Strommesswert (bei DC) 20 A

max. Strommesswert (bei AC) 20 A

Spannungsmessbereich (DC) 1000 V

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

957.95 € *

Available: 0 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

957.95 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Recorder-Multimeter, C.A 5292-BT, Chauvin Arnoux

The ASYC IV portable multimeters with graphical colour display can be used for direct measurement of the main electrical quantities and instantaneous viewing of the trends and waveform. These multimeters are compact, rugged, watertight and specially designed for easy handling. With multiple quantities measured around the main function, as well as functions for specification, relative measurement, mathematical functions and direct current measurement using a clamp make these multimeters genuine measurement experts.

Technical specifications

	Anzeige Digits	100000
	Ausführung	Digital-Multimeter
	Echteffektivwertmessung (TRMS) möglich	Yes
	Kapazitätsbereich	1 nF bis 10 mF
	max. Strommesswert (bei AC)	20 A
	max. Strommesswert (bei DC)	20 A
	max. Widerstandsmessbereich	100 MΩ
	Spannungsmessbereich (AC)	1000 V
	Spannungsmessbereich (DC)	1000 V
	Überspannungskategorie	CAT III 1000 V, CAT IV 600 V
