MTX 203 | Chauvin Arnoux

TRMS AC current and voltage measurements and all the ranges programmed automatically for simpler use

NCV (no-contact voltage) detection for work in total safety

Convenient: backlit screen and built-in torch

Ergonomic: fit in one hand

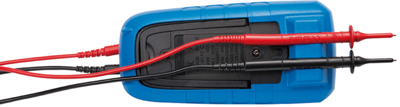

Practical: thanks to its shockproof sheath with storage slots for leads which is also magnetized for easy mounting on electrical cabinets

Description

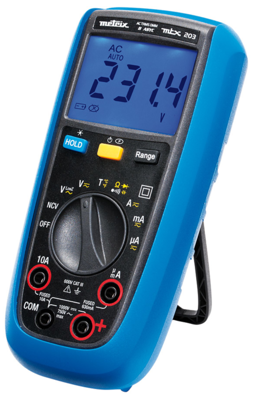

Their compact casing fits in one hand and can be stowed in your toolbox for all your applications in the field. With its magnetized sheath, the multimeter can be used hands-free, even in electrical cabinets. The patented Multifix mounting system is ideal for use with these multimeters, allowing you to hook it onto a cabinet door or your belt or suspend it… The two-position stand ensures

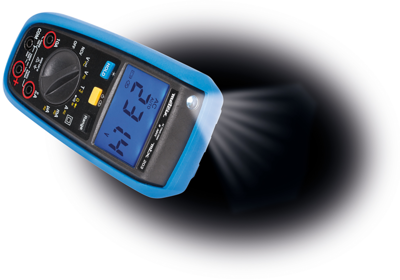

easy reading however the multimeter is positioned. Readings are made even clearer by the blue backlighting of the display 6,000 counts. The built-in torch means the multimeter can be used even in the dark.

The rotary switch offers one function per position. On the front panel, 3 keys are all you need to access all the various functions. The 600 V CAT III, IP54 double-well input terminals are easily accessible.

Electrical maintenance operations are optimized thanks to the VLowZ low-impedance voltage measurement function. It is also very easy to carry out initial troubleshooting on PCBs by measuring the resistance, capacitance, diode, etc.

In addition to the traditional measurements, the MTX200 models can measure temperature via a K thermocouple contact sensor delivered as standard. This means users can carry out:

• electrical maintenance

• initial troubleshooting on PCBs

• verification of radiator control, etc.

Technical specifications

Display : 6,000 counts

AC voltage : 0,6 V to 750 V

DC voltage : 0,6 V to 1,000 V

AC/DC current : 10 μA to 10 A

Resistance : 1 Ω to 60 MΩ

Capacitance : 1 nF to 100 mF

Temperature with K thermocouple (°C / °F) : from -55 °C to +1 200 °C

Dimensions / weight: 170 x 80 x 50 mm / 320 g
