CLM1000-10-00-0000 | Christ-Elektronik

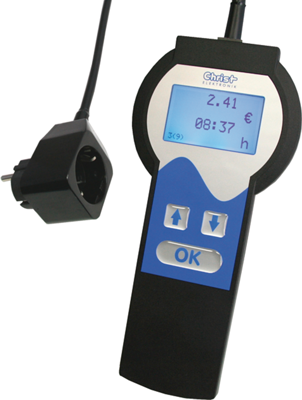

Power consumption meters, type Christ CLM1000.

Easy operation by means of three membrane keys with GT technology. The device can be used to measure cumulative power and the consumption (also suitable for 24 h measurements). Consumption costs (cumulative 24 h costs) can be read by entering the electricity tariff per kWh (only CLM1000 Standard); Power: 0 to 4224 W, consumption: 0 to 99999.99 kWh or 0 to 108 kWh within 24 h, voltage: 100 to 264 V. Current: 0 to 16 A. Tolerance: ±0.3%/±3 Digit, measuring rate: 1.0 s. Operating temperatures: 0 to +50 °C. Dimensions: W 95, H 35, L 200 mm.

Type CLM1000 Professional.

With additional display of apparent power, effective power, apparent energy, reactive energy, load detection (resistance, capacitance, inductance) and power factor. Memory for maximum and minimum values. 15 operating modes. CLM1000 Professional Plus also includes data logger and USB port in addition.

Type: CLM1000 Professional Plus, power consumption meter
