45037 | CM Manufactory

Safety relays, 3 Form A (N/O) + 1 Form B (N/C), 24 V AC/DC, 45037

Order No.: 12G7609
EAN: 4250050919654
MPN:
45037
Series: SAFE 1

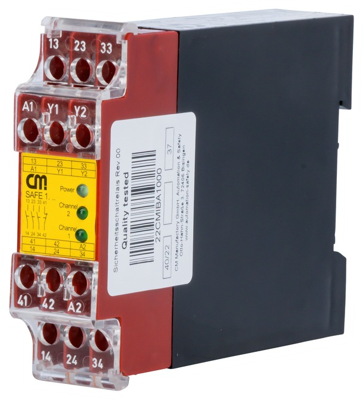

45037 CM Manufactory Safety relays
Image may differ
Unit Price (€ / pc.)
164.9816 € *
Available: 4 pcs.
Leadtime: 4 Weeks **
Total Price:
164.98 € *
Price list
Quantity
Price per unit*
1 pcs.
164.9816 €
5 pcs.
147.0840 €
10 pcs.
129.1864 €
*incl. VAT plus shipping costs
**Subject to prior sale

Safety controller, 45037, CM Manufactory

The 45037 is a safety relay for emergency stop circuits and limit switches for sliding guards up to Cat. 3 / PL d according to EN ISO 13849-1. The device is designed for one or two channel operation.

Technical specifications
Version Sicherheitsschaltgerät
Contact type 3 Schließer + 1 Öffner
Input voltage AC 24 V AC/DC
Type of Use Not-Halt-Kreise und Schutztürüberwachungskontakte
Assembly Hutschiene
Width 22.5 mm
Height 80.5 mm
Depth 99.5 mm
Logistics
Country of origin DE
Customs tariff number 85364190
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
