45072 | CM Manufactory

Safety relays, 4 safety semiconductor outputs, 24 VDC, 45072

Order No.: 12G7645
EAN: 4250050922197
MPN:
45072
Series: SAFE C

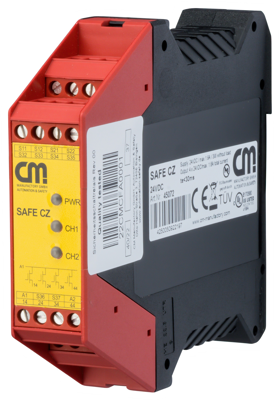

45072 CM Manufactory Safety relays
Image may differ
Unit Price (€ / pc.)
208.0120 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
208.01 € *
Price list
Quantity
Price per unit*
1 pcs.
208.0120 €
5 pcs.
206.7625 €
10 pcs.
205.5130 €
*incl. VAT plus shipping costs
**Subject to prior sale

Safety controller, 45072, CM Manufactory

The 45072 is a safety switching device for two-hand switches Type III c according to DIN EN ISO 13851, DIN EN 574 and ZH1/456 with (or Type II without) monitoring of synchronous actuation with 4 OSSD outputs up to Cat. 4 / PL e according to EN ISO 13849-1.

Technical specifications
Version Sicherheitsschaltgerät
Contact type 4 Sicherheitshalbleiterausgänge
Input voltage AC 24 VDC
Type of Use für Zweihandschaltungen
Assembly Hutschiene
Width 22.5 mm
Height 99 mm
Depth 114.5 mm
Logistics
Country of origin DE
Customs tariff number 85364190
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Bleititanat, Blei
