45232 | CM Manufactory

Safety relays, 2 Form A (N/O), 24 V AC/DC, 45232

Order No.: 12G7638
EAN: 4250050922241
MPN:
45232
Series: SAFE 5

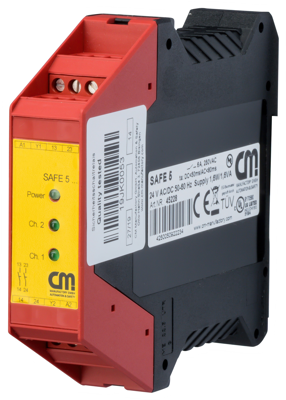

45232 CM Manufactory Safety relays
Image may differ
Unit Price (€ / pc.)
150.6064 € *
Available: 0 pcs.
Next delivery: 2 pcs. on 2025-05-02
Leadtime: 4 Weeks **
Total Price:
150.61 € *
Price list
Quantity
Price per unit*
1 pcs.
150.6064 €
5 pcs.
135.1364 €
10 pcs.
119.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale

Safety controller, 45232, CM Manufactory

The 45232 is a safety relay for emergency stop circuits and protective door monitoring up to Cat. 3 / PL d according to EN ISO 13849-1. The device is designed for one or two channel operation. With monitoring of the start button.

Technical specifications
Version Sicherheitsschaltgerät
Contact type 2 Schließer
Input voltage AC 24 V AC/DC
Type of Use Not-Halt-Kreise und Schutztürüberwachungskontakte
Assembly Hutschiene
Width 22.5 mm
Height 99 mm
Depth 114.5 mm
Logistics
Country of origin DE
Customs tariff number 85364190
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
