45317 | CM Manufactory

Safety relays, 3 Form A (N/O) + 1 Form B (N/C), 24 V AC/DC, 45317

Order No.: 12G7631
EAN: 4250050922265
MPN:
45317
Series: SAFE 4

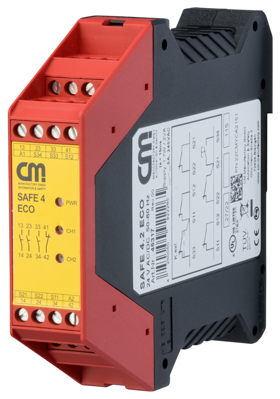

45317 CM Manufactory Safety relays
Image may differ
Unit Price (€ / pc.)
163.3989 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
163.40 € *
Price list
Quantity
Price per unit*
1 pcs.
163.3989 €
5 pcs.
156.9670 €
10 pcs.
150.5350 €
*incl. VAT plus shipping costs
**Subject to prior sale

Safety controller, 45317, CM Manufactory

The 45317 is a safety relay for emergency stop circuits and safety door monitoring contacts up to Cat. 4 / PL e according to EN ISO 13849-1. The device is designed for one or two channel operation. Optionally with or without monitoring of the start button.

Technical specifications
Version Sicherheitsschaltgerät
Width 22.5 mm
Input voltage AC 24 V AC/DC
Height 99 mm
Contact type 3 Schließer + 1 Öffner
Assembly Hutschiene
Depth 114.5 mm
Type of Use Not-Halt-Kreise und Schutztürüberwachungskontakte
Logistics
Country of origin DE
Customs tariff number 85364190
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
