45339 | CM Manufactory
Safety relays, 3 Form A (N/O) + 1 Form B (N/C), 24 V AC/DC, 45339
Unit Price (€ / pc.)
168.6706 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
168.67 € *
Price list
Quantity
Price per unit*
1 pcs.
168.6706 €
5 pcs.
153.2839 €
10 pcs.
137.8972 €
*incl. VAT plus shipping costs
**Subject to prior sale

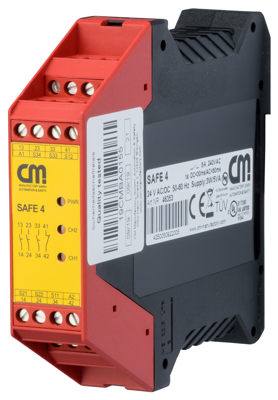

Safety controller, 45339, CM Manufactory
The 45339 is a safety relay for emergency stop circuits and protective door monitoring up to Cat. 4 / PL e according to EN ISO 13849-1. The device is designed for one or two channel operation and has start button monitoring.
Technical specifications
| Ausführung | Sicherheitsschaltgerät | |
| Breite | 22.5 mm | |
| Eingangsspannungsbereich | 24 V AC/DC | |
| Höhe | 99 mm | |
| Kontaktart | 3 Schließer + 1 Öffner | |
| Montage | Hutschiene | |
| Tiefe | 114.5 mm | |
| Nutzung | Not-Halt-Kreise und Schutztürüberwachungskontakte |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85364190 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
