45344 | CM Manufactory
Safety relays, 3 Form A (N/O) + 1 Form B (N/C), 110 VAC, 45344
Unit Price (€ / pc.)
179.4520 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
179.45 € *
Price list
Quantity
Price per unit*
1 pcs.
179.4520 €
5 pcs.
163.0835 €
10 pcs.
146.7151 €
*incl. VAT plus shipping costs
**Subject to prior sale

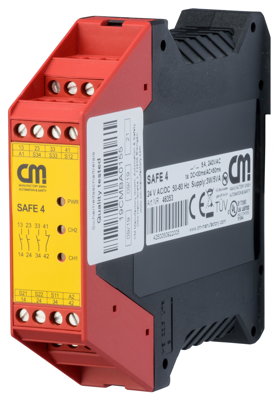

Safety controller, 45344, CM Manufactory
The 45344 is a safety relay for emergency stop circuits and protective door monitoring up to Cat. 4 / PL e according to EN ISO 13849-1. The device is designed for one or two channel operation and has start button monitoring.
Technical specifications
| Version | safety switching device | |
| Width | 22.5 mm | |
| Input voltage AC | 110 VAC | |
| Height | 99 mm | |
| Contact type | 3 Form A (N/O) + 1 Form B (N/C) | |
| Assembly | DIN rail | |
| Depth | 114.5 mm | |
| Type of Use | emergency stop circuits and safety gate monitoring contacts |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
