46365 | CM Manufactory

Safety relays, 3 Form A (N/O) + 1 Form B (N/C), 24 V AC/DC, 46365

Order No.: 12G7659
EAN: 4250050922067
MPN:
46365
Series: SAFE M

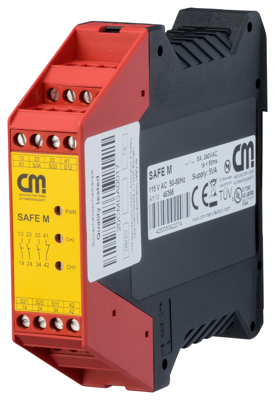

46365 CM Manufactory Safety relays
Image may differ
Unit Price (€ / pc.)
208.3690 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
208.37 € *
Price list
Quantity
Price per unit*
1 pcs.
208.3690 €
5 pcs.
185.7650 €
10 pcs.
163.1609 €
*incl. VAT plus shipping costs
**Subject to prior sale

Safety controller, 46365, CM Manufactory

The 46365 is a safety relay for safety mats and safety edges up to Cat. 3 / PL d according to EN ISO 13849-1. The device is designed for one or two channel operation. Without monitoring the start button.

Technical specifications
Version Sicherheitsrelais
Contact type 3 Schließer + 1 Öffner
Input voltage AC 24 V AC/DC
Type of Use für Sicherheitsschaltmatten und Sicherheitsleisten
Assembly Hutschiene
Width 22.5 mm
Height 99 mm
Depth 114.5 mm
Logistics
Country of origin DE
Customs tariff number 85364190
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
