19020352 | CML
LED signal light, 24 V (DC), yellow, 6 mcd, Mounting Ø 6 mm, pitch 3.5 mm, LED number: 1, 19020352
Unit Price (€ / pc.)
6.5450 € *
Available: 41 pcs.
Leadtime: 5 Weeks **
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5450 €
10 pcs.
5.7715 €
100 pcs.
5.0575 €
250 pcs.
4.8552 €
1000 pcs.
4.5458 €
*incl. VAT plus shipping costs
**Subject to prior sale

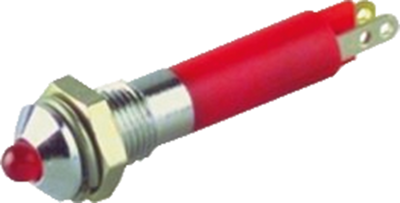

LED signal lamps, type CML 1902.
Panel-mount diameter: 6.0 mm. LED diameter: 3.0 mm, inner reflector made of high-gloss chrome-plated brass, series resistor. Connection: tab terminals 2.0 x 0.5 mm. Degree of protection: IP 40. Ambient temperatures: –20 to +60 °C.
Technical attributes (type, rated voltage, color, rated current, luminous intensity): 19020352, 24 VDC, yellow, 15 mA, 6.0 mcd
Technical specifications
| Anschluss | Flachstecker 2,0 x 0,5 mm | |
| Anzahl der LEDs | 1 | |
| Diodendurchmesser | 3 mm | |
| Einbaudurchmesser | 6 mm | |
| Farbe der Beleuchtung | gelb | |
| Lichtstärke | 0.006 cd | |
| Montage | Zentralbefestigung | |
| Nennspannung (DC) | 24 V | |
| Nennstrom | 15 mA | |
| Rastermaß | 3.5 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85414100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
