19040351 | CML
LED signal light, 24 V (DC), green, 32 mcd, Mounting Ø 8 mm, pitch 4.3 mm, LED number: 1, 19040351
Unit Price (€ / pc.)
6.6521 € *
Available: 15 pcs.
Leadtime: 5 Weeks **
Total Price:
6.65 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6521 €
10 pcs.
5.8548 €
100 pcs.
5.1289 €
250 pcs.
4.9266 €
1000 pcs.
4.6172 €
*incl. VAT plus shipping costs
**Subject to prior sale

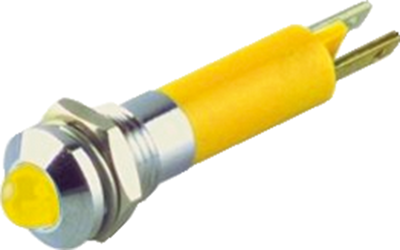

LED signal lamps, type CML 1904.
Panel-mount diameter: 8.0 mm. LED diameter: 5.0 mm, inner reflector made of high-gloss chrome-plated brass, series resistor. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
Technical attributes (type, rated voltage, color, rated current, luminous intensity): 19040351, 24 VDC, green, 20 mA, 32 mcd
Technical specifications
| Anschluss | Flachstecker 2,8 x 0,8 mm | |
| Anzahl der LEDs | 1 | |
| Diodendurchmesser | 5 mm | |
| Einbaudurchmesser | 8 mm | |
| Farbe der Beleuchtung | grün | |
| Lichtstärke | 0.032 cd | |
| Montage | Zentralbefestigung | |
| Nennspannung (DC) | 24 V | |
| Nennstrom | 20 mA | |
| Rastermaß | 4.3 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85414100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
