19090350 | CML
LED signal light, 24 V (AC), 24 V (DC), red, 1.2 cd, Mounting Ø 8 mm, LED number: 1, 19090350
Unit Price (€ / pc.)
8.7584 € *
Available: 5 pcs.
Leadtime: 5 Weeks **
Total Price:
8.76 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7584 €
10 pcs.
7.7112 €
100 pcs.
6.7711 €
250 pcs.
6.4974 €
1000 pcs.
6.0809 €
*incl. VAT plus shipping costs
**Subject to prior sale

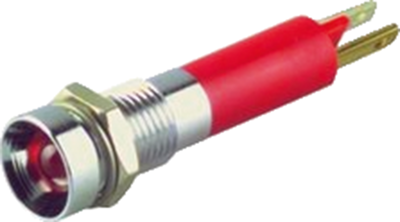

LED signal lamps, type CML 1909.
Panel-mount diameter: 8.0 mm, Very bright light source, visible in sunlight. LED diameter: 5.0 mm, inner reflector made of high-gloss chrome-plated brass, series resistor and half-wave rectifier. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
Technical attributes (type, rated voltage, color, rated current (AC/DC), luminous intensity): 19090350, 24 V AC/DC, red, 9.0/17 mA, 1200 mcd
Technical specifications
| Connection | faston plug 2.8 x 0.8 mm | |
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm | |
| Installation diameter | 8 mm | |
| Farbe der Beleuchtung | red | |
| Luminous intensity | 1.2 cd | |
| Assembly | central Mounting | |
| Rated voltage (AC) | 24 V | |
| Rated voltage (DC) | 24 V | |
| Rated current | 17 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
