192A0250 | CML
LED signal light, 12 V (AC), 12 V (DC), red, 700 mcd, Mounting Ø 14 mm, LED number: 1, 192A0250
Unit Price (€ / pc.)
8.5085 € *
Available: 2 pcs.
Leadtime: 5 Weeks **
Total Price:
8.51 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5085 €
10 pcs.
7.4851 €
50 pcs.
6.9853 €
150 pcs.
6.6759 €
500 pcs.
6.3308 €
*incl. VAT plus shipping costs
**Subject to prior sale

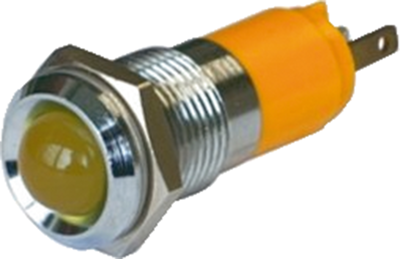

LED signal lamps, type CML 192A.
Panel-mount diameter: 14 mm, Very bright light, visible in sunlight. LED diameter: 10 mm. With high-gloss chrome-plated or black chrome-plated brass reflector, series resistor and half-wave rectifier. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
With high-gloss chrome-plated brass reflector.
Technical attributes (type, rated voltage, color, rated current (AC/DC), luminous intensity): 192A0250, 12 V AC/DC, red, 9.0/17 mA, 700 mcd
Technical specifications
| Connection | faston plug 2.8 x 0.8 mm | |
| Number of LEDs | 1 | |
| Diode Diameter | 10 mm | |
| Installation diameter | 14 mm | |
| Farbe der Beleuchtung | red | |
| Luminous intensity | 0.7 cd | |
| Assembly | central Mounting | |
| Rated voltage (AC) | 12 V | |
| Rated voltage (DC) | 12 V | |
| Rated current | 17 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
