MKA-3µF-450V-FS 25X57MM A | Comar
MKP motor operating capacitor, 3 µF, ±5 %, 450 V (AC), PP, 16 mm, MKA-3µF-450V-FS 25X57MM A
Unit Price (€ / pc.)
7.5922 € *
Available: 9 pcs.
Next delivery: 50 pcs. on 2025-01-31
Leadtime: 10 Weeks **
Total Price:
7.59 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5922 €
10 pcs.
6.6878 €
100 pcs.
5.8667 €
250 pcs.
5.6406 €
1000 pcs.
5.2717 €
*incl. VAT plus shipping costs
**Subject to prior sale

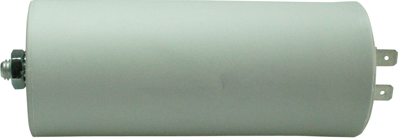

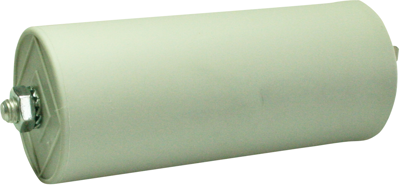

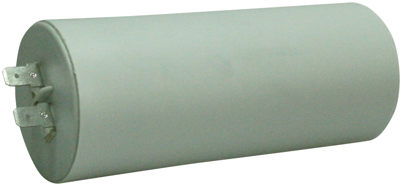

MKP motor operation capacitor, type Comar MKA.
In self-extinguishing plastic can
With 6.3 x 0.8 mm tab terminals, type MKA.

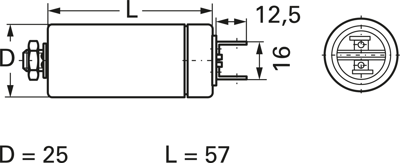

Technical specifications
| Number of pins | 2 | |
| Design | can | |
| Dielectric material | PP | |
| Height | 57 mm | |
| Capacity | 3 µF | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -25 °C | |
| Rated voltage (AC) | 450 V | |
| Grid | 16 mm | |
| Tolerance | ±5 % |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85322500 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
