2N2646-T | COMSET Semiconductors

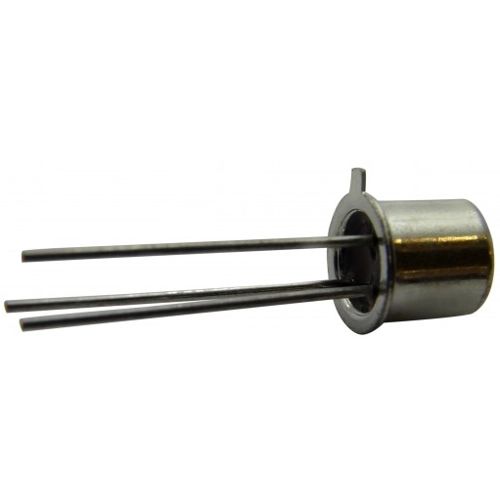

Bipolar junction transistor, PNP, 30 V, THT, TO-18, 2N2646-T
Discontinued
Unit Price (€ / pc.)
4.4030 € *
Available: 14 pcs.
Leadtime: 6 Weeks **
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4030 €
10 pcs.
3.8675 €
100 pcs.
3.4034 €
500 pcs.
3.1416 €
*incl. VAT plus shipping costs
**Subject to prior sale
Unijunction transistor, 2N2646-T, COMSET
The 2N2646-T has a structure resulting in lower saturation voltage, peak-point current and valley current as zell as a much higher base-one peak pulse voltage.It is intended for general purpose industrial applications where circuit economy is of primary importance, and is ideal for use in firing circuits for Silicon Controlled Rectifiers and other applications where a guaranteed minimum pulse amplitude is required.
Features
- Compliance to RoHS
Technical specifications
| Version | PNP | |
| Enclosure | TO-18 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and emitter Vceo | 30 V | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Rated current | 2 A | |
| Power dissipation | 0.3 W |
Download
Logistics
| Country of origin | BY |
| Customs tariff number | 85412900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
