2N3055-T | COMSET Semiconductors

Name: Bipolar junction transistor, NPN, 15 A, 60 V, THT, TO-3, 2N3055-T
Brand: COMSET Semiconductors
SKU: 27S2500
Price: 2.45 EUR
Availability: InStock

Bipolar junction transistor, NPN, 15 A, 60 V, THT, TO-3, 2N3055-T

Order No.: 27S2500

EAN: 4099879030313

MPN:

2N3055-T

Series: 2N3

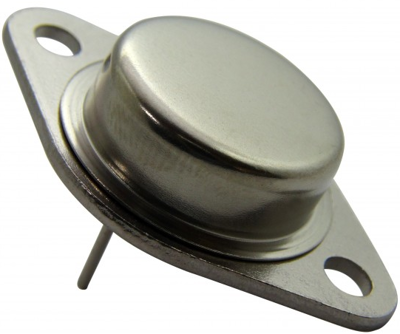

Image may differ

Key Specification:

Montage THT

Gehäuse TO-3

Ausführung NPN

Sättigungsspannung 1.1 V

Kollektorstrom 15 A

Show 3 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.4514 € *

Available: 1,572 pcs.

Leadtime: On Request **

Total Price:

2.45 € *

Price list

Quantity

Price per unit*

1 pcs.

2.4514 €

50 pcs.

2.0825 €

100 pcs.

2.0111 €

200 pcs.

1.9278 €

1000 pcs.

1.7255 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

NPN power transistor, 2N3055-T, COMSET

The 2N3055-T is a silicon Planar Epitaxial NPN transistor in Jedec TO-3 metal case. It is designed for general purpose, moderate speed, switching and amplifier applications.

Features

Compliance to RoHS

Technical specifications

	Ausführung	NPN
	Gehäuse	TO-3
	max. Temperatur	200 °C
	max.Spannung zwischen Kollektor und Basis Vcbo	100 V
	max.Spannung zwischen Kollektor und Emitter Vceo	60 V
	min. Temperatur	-65 °C
	Montage	THT
	Nennstrom	15 A
	Sättigungsspannung	1.1 V
	Transitfrequenz fTmin	200 kHz
	Verlustleistung VA (AC)	115 W
	Kollektorstrom	15 A
	Max Gleichstromverstärkung	70 mA
	Min Gleichstromverstärkung	20 mA
