2N3773-T | COMSET Semiconductors
Bipolar junction transistor, NPN, 16 A, 140 V, THT, TO-3, 2N3773-T
Unit Price (€ / pc.)
4.6053 € *
Available: 30 pcs.
Leadtime: 4 Weeks **
Total Price:
4.61 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6053 €
10 pcs.
4.0460 €
100 pcs.
3.5581 €
250 pcs.
3.4153 €
1000 pcs.
3.2011 €
*incl. VAT plus shipping costs
**Subject to prior sale
NPN transistor, 2N3773-T, COMSET

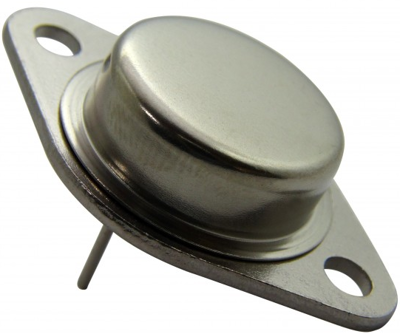

The 2N3773-T is a silicon planar NPN transistor in Jedec TO-3 metal case. It is intended for linear amplifiers and inductive switching applications.
Features
- Compliance to RoHS
Technical specifications
| Version | NPN | |
| Enclosure | TO-3 | |
| max. operating temperature | 200 °C | |
| max.voltage between collector and base Vcbo | 160 V | |
| max.voltage between collector and emitter Vceo | 140 V | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Rated current | 16 A | |
| Saturation voltage | 1.4 V | |
| Transit frequency fTmin | 200 kHz | |
| Power dissipation | 150 W | |
| Collector current | 16 A | |
| Max DC amplification | 60 mA | |
| Min DC gain | 15 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
