BC140-16-T | COMSET Semiconductors

Name: Bipolar junction transistor, PNP, 1 A, 40 V, THT, TO-39, BC140-16-T
Brand: COMSET Semiconductors
SKU: 11S3600
Price: 1.79 EUR
Availability: InStock

Bipolar junction transistor, PNP, 1 A, 40 V, THT, TO-39, BC140-16-T

Order No.: 11S3600

EAN: 4099879026484

MPN:

BC140-16-T

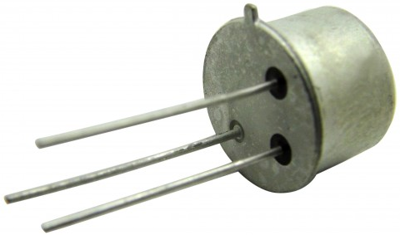

Image may differ

Key Specification:

Assembly THT

Enclosure TO-39

Version PNP

Saturation voltage 600 mV

Collector current 1 A

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.7850 € *

Available: 235 pcs.

Leadtime: 1 Week **

Total Price:

1.79 € *

Price list

Quantity

Price per unit*

1 pcs.

1.7850 €

25 pcs.

1.5232 €

300 pcs.

1.2852 €

600 pcs.

1.2257 €

1200 pcs.

1.1662 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

General purpose transistor, BC140-16-T, COMSET

The BC140-16-T silicon planar epitaxial NPN transistor is mounted in TO-18 metal package. It is particulary designed for audio amplifiers and switching applications up to 1 A.

Features

Compliance to RoHS

Technical specifications

	Version	PNP
	Enclosure	TO-39
	max. operating temperature	175 °C
	max.voltage between collector and base Vcbo	80 V
	max.voltage between collector and emitter Vceo	40 V
	min. operating temperature	-55 °C
	Assembly	THT
	Rated current	1 A
	Saturation voltage	600 mV
	Transit frequency fTmin	50 MHz
	Power dissipation	3.7 W
	Collector current	1 A
	Max DC amplification	250 mA
	Min DC gain	100 mA
